Caracteristicas

Especificaciones

Nombre: Las placas de cabeza para dos conductores de paquete

Modelo: SZ2 a 8

Carga nominal: Entre 80 y 180 kn

ancho: 75 a 125 mm

Peso: 17-100 kg

Garantía: 1 año

Resaltar:

80-180KN Rated Load Head Boards

Precise Subconductor Spacing Twin Spacer Dampers

Aeolian Vibration Damping Duplex Spacer Dampers

Información básica

Lugar de origen: Ningbó

Nombre de la marca: Suntech

Certificación: ISO

Número de modelo: SZ2

Pago y Envío Términos

Detalles de empaquetado: Caja de madera contrachapada

Tiempo de entrega: 3-7 días

Condiciones de pago: LC, T/T

Capacidad de la fuente: 20000 unidades/mes

Galería

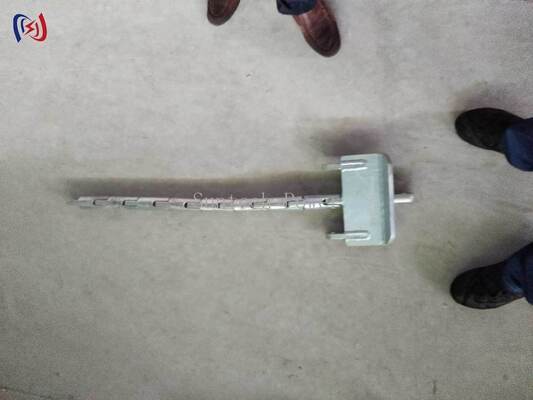

Professional Head Boards for Two Bundle Conductors with 80-180KN Rated Load for Precise Subconductor Spacing and Aeolian Vibration Damping

Descripción de producto

Professional Head Boards for Two Bundle Conductors

Professional Head Boards for Two Bundle Conductors ensure secure spacing in transmission line installations. These critical components maintain precise separation between sub-conductors while providing essential vibration damping for reliable power transmission.

Product Specifications

Item Number	Model	Rated Load (KN)	Applicable Sheave Width (MM)	Weight (KG)	Feature
17220	SZ2-8	80	75	17	Conductor are independent
17221	SZ2-8A	100		19
17222	SZ2-8B	110		19.5
17223	SZ2A-8	80	100	90	Poising sheave
17223T	SZ2A-8T	110	100		Poising sheave
17224	SZ2B-13	130	110	55	Conductor are independent
17225	SZ2C-13	130	110	50	Conductor are independent
17226	SZ2B-18	180	125	90	Conductor are independent

Product Overview

Head Boards for Two Bundle Conductors, also known as twin or duplex spacer dampers, are essential components for high-voltage and extra-high-voltage transmission lines using bundle conductor configurations. These devices maintain precise separation between sub-conductors while incorporating damping elements to absorb vibration energy, ensuring long-term reliability and preventing conductor fatigue and damage.

Key Features and Benefits

Maintains Precise Subconductor Spacing Ensures required separation between conductors for optimal electrical performance, preventing corona discharge and maintaining line efficiency.
Prevents Conductor Clashing and Wear Eliminates contact between energized conductors to prevent short circuits, abrasion, and mechanical damage under various environmental conditions.
Provides Vibration Damping Absorbs and dissipates energy from aeolian vibration and subspan oscillation to prevent conductor fatigue and hardware damage.
Optimizes Electrical Performance Maintains proper electromagnetic field interaction to minimize power losses and support designed current-carrying capacity.
Durable Construction Manufactured from high-strength, corrosion-resistant aluminum alloys for 40+ years of reliable service in harsh environmental conditions.
Easy Installation and Maintenance Designed for efficient installation using live-line or hot-stick methods, with modular designs facilitating inspection and replacement.
Enhances Grid Capacity Enables safe bundle conductor operation, increasing power transfer capacity of existing transmission line right-of-ways.
Reduces Lifetime Costs Minimizes repair needs, conductor replacements, and unplanned outages through effective vibration and wear prevention.

Head Boards for Two Bundle Conductors are sophisticated mechanical damping devices that actively manage wind and electromagnetic forces to ensure decades of safe, reliable, and efficient transmission line operation. They are essential for converting the theoretical benefits of bundle conductor technology into practical, real-world performance.
