High Tensile Steel Conductor Mesh Sock Joints for Uniform Pressure Distribution and Temporary Dead-End Applications

1 piezas

MOQ

negotiable

Precio

Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Nombre: Las demás articulaciones de medias de malla de conductor

Modelo: SLW

ACSR: 70 a 1250

Carga nominal: Entre 15 y 120KN

Carga de rato: 30 a 250KN

Garantía: 1 año

Resaltar:

High Tensile Steel Mesh Sock Joints

Uniform Pressure Distribution Conductor Gripping Sleeves

Temporary Dead-End Mesh Sock Joints

Información básica

Lugar de origen: Ningbó

Nombre de la marca: Suntech

Certificación: ISO

Número de modelo: SLW

Pago y Envío Términos

Detalles de empaquetado: Caja de madera contrachapada

Tiempo de entrega: 3-7 días

Condiciones de pago: LC, T/T

Capacidad de la fuente: 30000 PC/mes

Galería

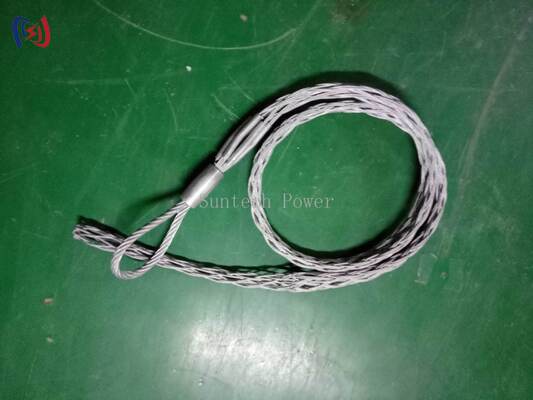

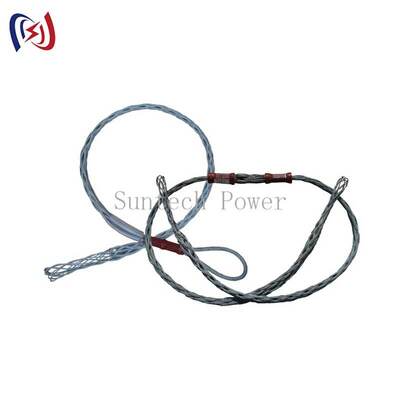

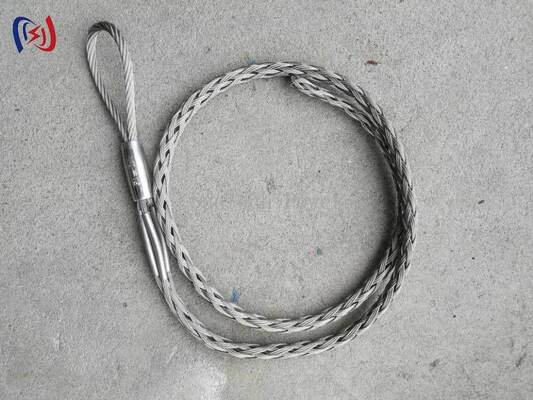

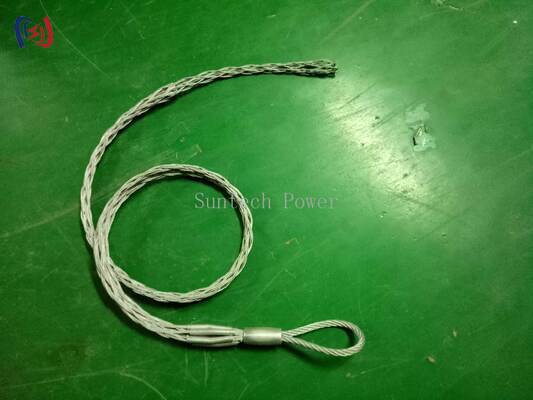

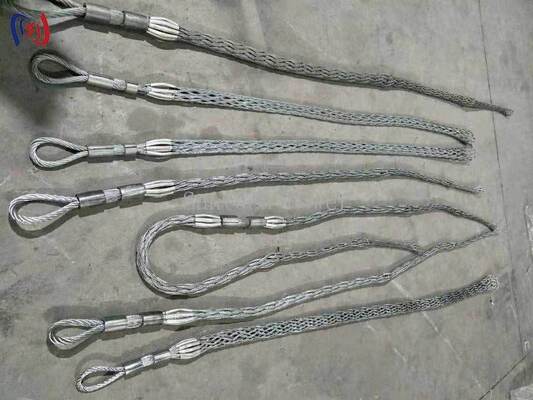

High Tensile Steel Conductor Mesh Sock Joints for Uniform Pressure Distribution and Temporary Dead-End Applications

Descripción de producto

Professional Conductor Mesh Sock Joints

Specialized temporary gripping devices for safe handling, tensioning, and pulling of bare overhead conductors including ACSR (Aluminum Conductor Steel Reinforced) and AAAC (All Aluminum Alloy Conductor).

Product Specifications

Single Head Item #	Double Head Item #	Model	Applicable Conductor (ACSR)	Rated Load (KN)
17161	17181	SLW(S)-1.5	ACSR70-95	15
17162	17182	SLW(S)-2	ACSR120-150	20
17163	17183	SLW(S)-2.5	ACSR185-240	25
17164	17184	SLW(S)-3	ACSR300-400	30
17165	17185	SLW(S)-4	ACSR500-600	40
17166	17186	SLW(S)-5	ACSR720	50
17167	17187	SLW(S)-7	ACSR900	70
17168	17188	SLW(S)-8	ACSR1000-1120	80
17169	17189	SLW(S)-12	ACSR1250	120

Key Features and Benefits

Secure High-Strength Temporary Grip: Creates reliable termination points capable of withstanding full pulling or tensioning forces without slipping.
Conductor Protection: Distributes gripping force evenly to prevent crushing, notching, and damage to conductor strands.
Pulling Eye Formation: Enables creation of secure loops and eyes for attachment to pulling lines and winch hooks.
Temporary Dead-End Function: Serves as provisional dead-end clamps during construction and repair operations.
Efficient Conductor Stringing: Smooth profile allows easy passage through stringing blocks and tensioners for continuous pulling.
Wide Conductor Compatibility: Available in various sizes to accommodate different conductor diameters from distribution to transmission voltages.
Durable and Reusable: Constructed from galvanized high-carbon or stainless steel wire for multiple uses.
Splicing and Repair Support: Simplifies complex operations by holding conductor ends in alignment under tension.
Live Line Work Compatibility: Provides secure attachment points for barehand method live line work.
Industry Standard Tool: Proven best practice for professional overhead line installation and maintenance.

Conductor Mesh Sock Joints provide a simple yet highly effective solution for applying massive force to conductors without causing damage. These tools serve as powerful, protective interfaces between conductors and installation equipment, enabling secure grips, safe pulls, and temporary terminations that contribute to the quality and longevity of electrical grid infrastructure.
