​​Hydraulic Steel Wire Rope Cutter Heavy-Duty Industrial Tool For 10mm-50mm Diameter Cables​

1 Unidad
MOQ
negotiable
Precio
​​Hydraulic Steel Wire Rope Cutter Heavy-Duty Industrial Tool For 10mm-50mm Diameter Cables​
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Nombre: Cortador de cuerda de alambre de acero hidráulico
el artículo no.: Se trata de un producto de la categoría "A" o "B".
Modelo: En el caso de las empresas de servicios de telecomunicaciones:
Diámetro de la pieza aplicable: 10 a 48 mm
Fuerza que corta máxima: 75-200KN
Fuerza manual sobre el mango: El valor de las emisiones de gases de efecto invernadero es el siguiente:
Peso: 14 a 30 kg
garantía: 1 Año
Resaltar:

50mm Steel Wire Rope Cutter

,

10mm Steel Wire Rope Cutter

,

Industrial Steel Wire Rope Cutter

Información básica
Lugar de origen: Ningbo
Nombre de la marca: Suntech
Certificación: ISO
Número de modelo: Cuota de mercado
Pago y Envío Términos
Detalles de empaquetado: Caja de madera contrachapada
Tiempo de entrega: 3-7 días
Condiciones de pago: L/C, T/T
Capacidad de la fuente: 1000 piezas al mes
Descripción de producto

​​Hydraulic Steel Wire Rope Cutter - Heavy-Duty Industrial Tool for 10mm-50mm Diameter Cables​

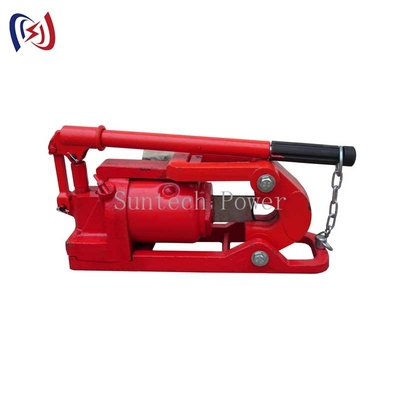

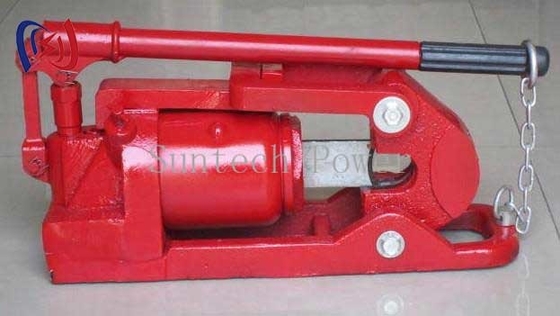

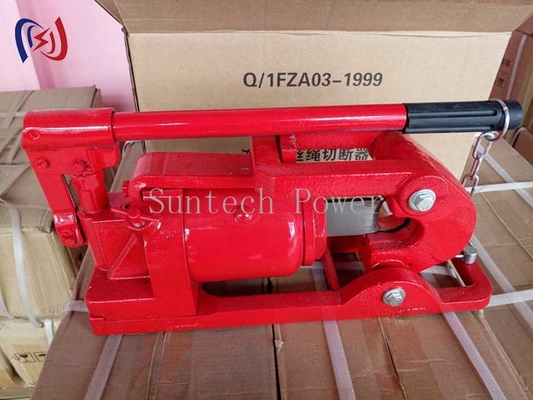

The ​​Hydraulic Steel Wire Rope Cutter​​ is a ​​professional-grade industrial tool​​ designed for ​​clean, precise cutting of steel cables, wire ropes, and rigging systems​​. With an ​​ultra-powerful 30-ton hydraulic system​​, it effortlessly cuts through ​​5mm to 50mm diameter steel wires​​ without causing fraying or deformation. Unlike manual cutters or angle grinders, this tool ​​maintains cable integrity​​ and improves work efficiency by ​​90%​​.


​​Key Features:​
✔ ​​Heavy-Duty Cutting Capacity​​ - Handles ​​up to 50mm diameter​​ steel wire ropes
✔ ​​Tungsten Carbide Blades (HRC 70+)​​ - Ultra-sharp and long-lasting for ​​15,000+ cuts​​
✔ ​​Zero Energy Dependency​​ - Fully hydraulic operation, no electricity required
✔ ​​Safety Lock Mechanism​​ - Dual-hand operation prevents accidental activation
✔ ​​Portable & Durable​​ - Weighs only ​​15kg​​ with reinforced steel frame


​​Performance Benefits:​

  • ​​Cuts 20mm steel rope in 3 seconds​​ - 10X faster than manual tools
  • ​​Clean, burr-free cuts​​ - Preserves cable strength for critical applications
  • ​​Low maintenance​​ - Self-lubricating system requires servicing every ​​10,000 cuts​​

​​Technical Specifications:​

  • ​​Model:​​ QY-30
  • ​​Max Cutting Diameter:​​ 50mm
  • ​​Blade Material:​​ Tungsten carbide-coated
  • ​​Operating Temperature:​​ -30°C to 60°C
  • ​​Compliance:​​ ISO 9001, CE, DNV-GL
  • ​​Warranty:​​ 1 years


​​Ideal Applications:​

  • Marine and offshore rigging
  • Mining and construction cable cutting
  • Elevator and crane maintenance
  • Power transmission line installation
Item No. Model Diameter of applicable(MM) Maximum cutting force(KN) manual force(KGF) Weight(KG)
16275 QY-30 Φ10-30 75 <=25 14

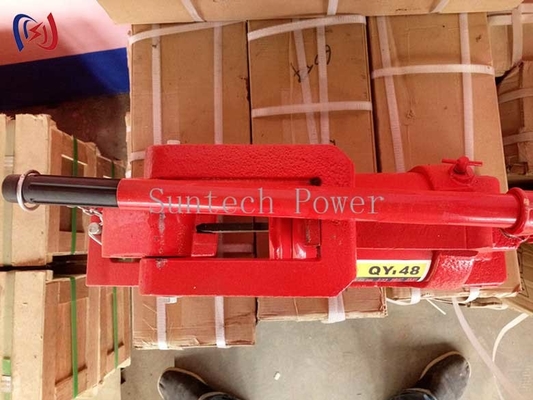

16275A QY-48 Φ10-48 200 <=39 30
